Model (2-stroke)
|
HMT9.9D
|
|
Demension
|
Overall Length:878mm
Overall Width:330mm Overall Height S:1,062mm Overall Height L:1,189mm |
|
Net Weight
|
Short Shaft:38.5 kg Long Shaft:40.5 kg
|
|
Gross Weight
|
Short shaft:50kg Long Shaft:52kg
|
|
Full Throttle Operating Range
|
4500-5500 r/m
|
|

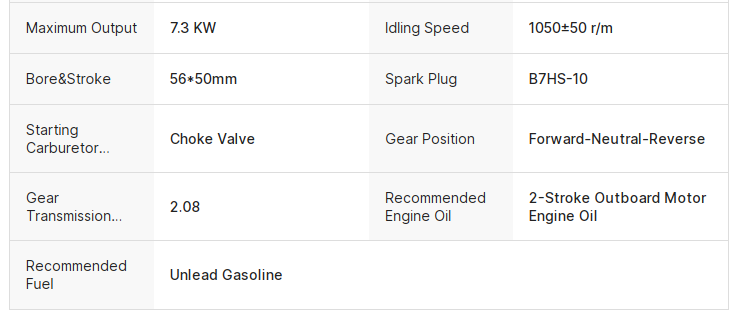

Maximum Output
|
7.3 KW
|
|
Idling Speed
|
1050±50 r/m
|
|
Displacement
|
246 cc
|
|
Bore&Stroke
|
56*50mm
|
|
Ignition Systerm
|
CDI
|
|
Spark Plug
|
B7HS-10
|
|
Spark Plug Gap
|
0.9-1.0 mm
|
|
Control Systerm
|
Tiller Handle
|
|
Starting Systerm
|
Manual
|
|
Starting Carburetor Systerm
|
Choke Valve
|
|
Gear Position
|
Forward-Neutral-Reverse
|
|
Gear Transmission Ratio
|
2.08
|
|
Trim and Tilt Systerm
|
Manual Tilt
|
|
Recommended Fuel
|
Unlead Gasoline
|
|
Recommended Engine Oil
|
2-Stroke Outboard Motor Engine Oil
|
|
Gear Oil
|
0.250L
|
|
Fuel Tanks Capacity
|
24L
|
|
Fuel Oil Ratio
|
50:1
|
|
Package Size
|
143.5*72*45 cm
|
